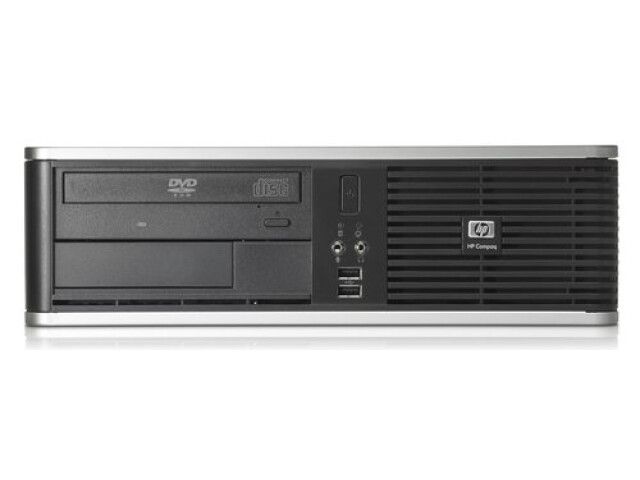

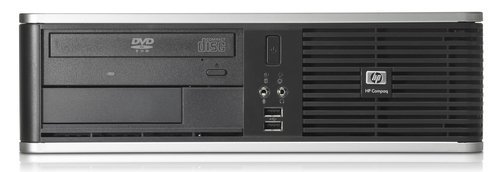

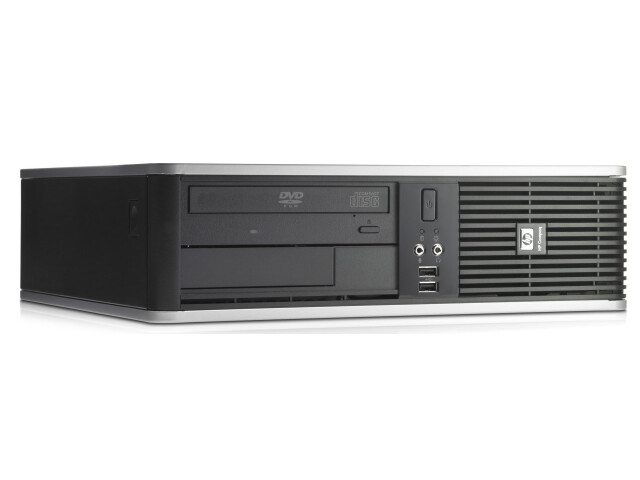

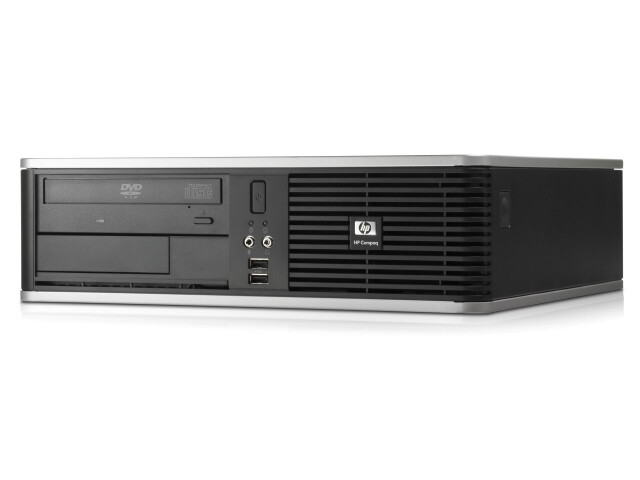

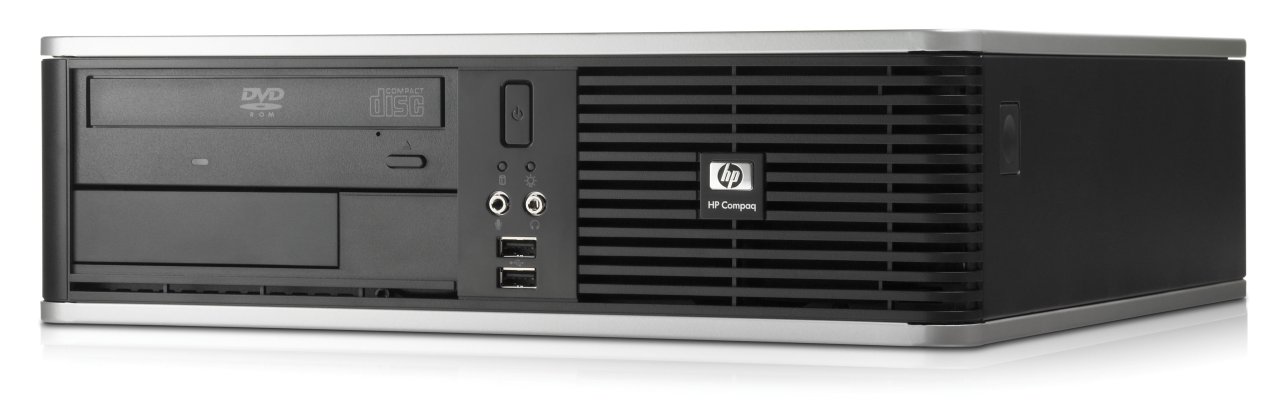

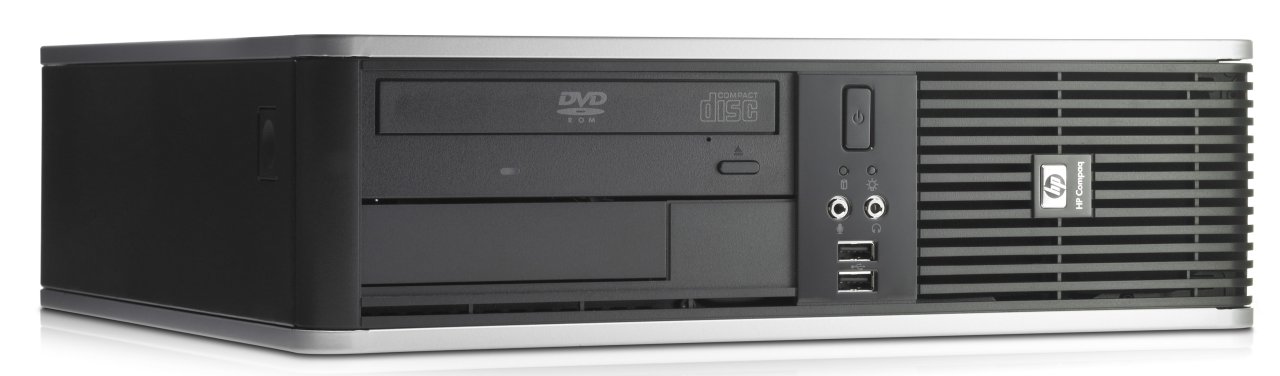

HP Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small Form Factor PC Intel® Core™2 Duo 2 GB DDR2-SDRAM Windows Vista Business
Lieferzeit: 1-2 Tage
Prozessorfamilie
Intel® Core™2 Duo
Prozessorhersteller
Intel
Prozessor
E6750
Prozessor-Taktfrequenz
2,66 GHz
Speicherkapazität
2 GB
Optisches Laufwerk - Typ
DVD Super Multi
Produkttyp
PC
Installiertes Betriebssystem
Windows Vista Business
Breite
337 mm
Tiefe
378 mm
Höhe
100 mm
Gewicht
8,5 kg
Anzahl Prozessorkerne
2
Prozessor-Threads
2
Prozessorsockel
LGA 775 (Socket T)
Prozessor-Cache
4 MB
Prozessor Cache Typ
L2
Frontsidebus des Prozessors
1333 MHz
Bus Typ
FSB
FSB Gleichwertigkeit
Nein
Prozessor Lithografie
65 nm
Prozessorbetriebsmodi
64-Bit
Prozessor-Serien
Intel Core 2 Duo E6000 Series
Prozessor Codename
Conroe
Thermal Design Power (TDP)
65 W
Tcase
72 °C
Anzahl der Processing Die Transistoren
291 M
Processing die Größe
143 mm²
Stepping
G0
CPU-Multiplikator (Bus-/Kernverhältnis)
8
ECC vom Prozessor unterstützt
Nein
Interner Speichertyp
DDR2-SDRAM
HDD Geschwindigkeit
7200 RPM
Maximaler Grafik-Adapterspeicher
0,256 GB
Ursprungsland
China
Audio-System
Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker
Kompatible Betriebssysteme
Genuine Windows XP Home 32; Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64
Unterstützte Anwendungen
Windows Vista Premium ready
Mitgelieferte Software
On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP OpenView Configuration Management Solutions Agent, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Client Foundation Suite (HP Client Manager, HP Systems Insight Manager, Altiris Local Recovery Pro Connector, Altiris Inventory Solution, Altiris Deployment Solution), HP Client Premium Suite (HP Client Manager, HP Systems Insight Manager Connector, HP OpenView Connector, Altiris Connector Solution, Altiris Local Recovery Pro, Altiris Audit Express, Altiris Client Management Suite Level 1), Computer Setup Utility, McAfee AntiVirus trial version, Roxio Easy Media Creator 9.0
Optional preloaded software, only for certain configurations: HP Total Care Advisor, PDF Complete, Computrace for Desktops, Verdiem Surveyor agent, InterVideo WinDVD 5.0, Microsoft Office 2007 Basic, Microsoft Office 2007 Professional, Microsoft Office 2007 Small Business, Microsoft Internet Explorer with Google Toolbar
Intel® Wireless-Display (Intel® WiDi)
Nein
Intel® 64
Ja
Verbesserte Intel SpeedStep Technologie
Ja
Eingebettete Optionen verfügbar
Nein
Intel® InTru™ 3D Technologie
Nein
Intel® Insider™
Nein
Intel® Clear Video HD Technology für (Intel® CVT HD)
Nein
Intel® Clear Video Technologie
Nein
Intel® VT-x mit Extended Page Tables (EPT)
Nein
Leerlauf Zustände
Ja
Thermal-Überwachungstechnologien
Ja
Intel® AES New Instructions (Intel® AES-NI)
Nein
Intel® Trusted-Execution-Technik
Ja
Execute Disable Bit
Ja
Intel® FDI-Technik
Nein
Intel® Flex Memory Access
Nein
Intel® Fast Memory Access
Nein
Intel® Enhanced Halt State
Ja
Intel® Demand Based Switching
Nein
Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID)
Nein
Prozessor-Paketgröße
37.5 x 37.5 mm
Prozessor-Code
SLA9V
Intel® Virtualisierungstechnik für direkte I/O (VT-d)
Nein
Intel® Virtualization Technologie (VT-X)
Ja
Intel® Dual Display Capable Technology
Nein
Intel® Rapid-Storage-Technik
Nein
ARK Prozessorerkennung
30784
Intel® Turbo-Boost-Technologie
Nein
Intel® Hyper-Threading-Technik (Intel® HT Technology)
Nein
Intel® Quick-Sync-Video-Technik
Nein
Intel® My-WiFi-Technik (Intel® MWT)
Nein
Intel® Anti-Theft Technologie (Intel® AT)
Nein
Konfliktloser-Prozessor
Nein
Stromverbrauch (Standardbetrieb)
240 W
Betriebstemperatur
10 - 35 °C
Temperaturbereich bei Lagerung
-30 - 60 °C
Relative Luftfeuchtigkeit in Betrieb
10 - 90%
Luftfeuchtigkeit bei Lagerung
5 - 95%
Relative Luftfeuchtigkeit
10 - 90%
Höhe bei Lagerung
9144
Zertifizierung
ENERGY STAR qualified; EPEAT Gold; 80% efficient power supply
Netzteiltyp
240W 80 Plus Active PFC
Energiebedarf
Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (80% High Efficiency)
Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50 kg-cal/hr) Maximum 1260 btu/hr (318 kg-cal/hr); System Heat Dissipation 80 Plus: Typical 150 btu/hr (38 kg-cal/hr), Maximum 1024 btu/hr (258 kg-cal/hr; Power Supply Fan: 80 mm variable speed, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <2.7 W
Modemtyp
N
Sicherheit Eigenschaften
Kensington Lock, Solenoid Hood Lock / Sensor
Netzwerkfunktionen
Integrated Intel 82566DM Gigabit Network Connection
Eingabegerät
HP PS/2 2-Button Optical Scroll Mouse
Größe (Imperial)
33,8 cm (13.3")
Stromversorgungsfunktionen - Beschreibung
Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50 kg-cal/hr) Maximum 1260 btu/hr (318 kg-cal/hr); System Heat Dissipation 80 Plus: Typical 150 btu/hr (38 kg-cal/hr), Maximum 1024 btu/hr (258 kg-cal/hr; Power Supply Fan: 80 mm variable speed, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <2.7 W
Weitere Anschlüsse

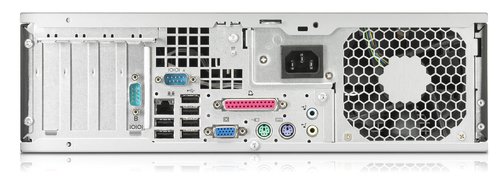

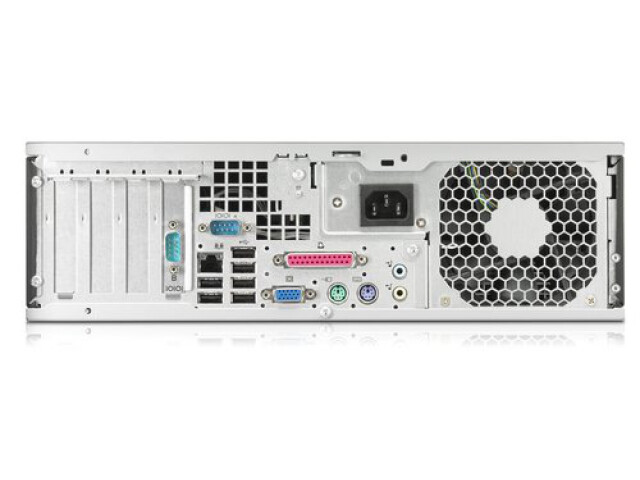

Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports
Grafikadapter - Leistungsmerkmale
3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-display Support: 2 displays can be supported via the motherboard's VGA connectors and DVI ADD2 card
Intel Graphics Media Accelerator 3100
<85 Hz @ 1920x1440, 75 Hz @ 2048x1536
Luftfeuchtigkeit (außer Betrieb)
5 - 90%
Videoadapter, Bus
PCI Express x16
Festplattencontroller
SATA 3.0Gb/s NCQ SMART VI
Controller für Disksubsystem - Beschreibung
SATA 3.0Gb/s
Grafikkartenauflösung
Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536
LAN-Treiber
Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000
Diskettenlaufwerk
Optional
Speicherplatten Typ
160 GB
Managementfunktionen
Intel vPro technology enabled, helps to lower IT costs and simplify manageability
Laufwerkseinschübe
1 external 5.25 inch, 1 external 3.5 inch
1 internal 3.5 inch
Erweiterungssteckplätze
1 low-profile PCI, 2 full-height PCI (optional), 1 low-profile PCI Express x16, 2 low-profile PCI Express x1
Audio enthalten
Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker
Prozessortechnologie
Intel vPro
Sicherheitsmanagement - Beschreibung
Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
Erweiterbarkeit
Windows Vista capable
Tastatur
HP PS/2
Hintere Öffnungen
6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 audio in; 1 audio out
Gewicht (imperial)
18.75 lb
Multimedia
Integrated High Definition audio with ADI1884 codec (all ports are stereo)
